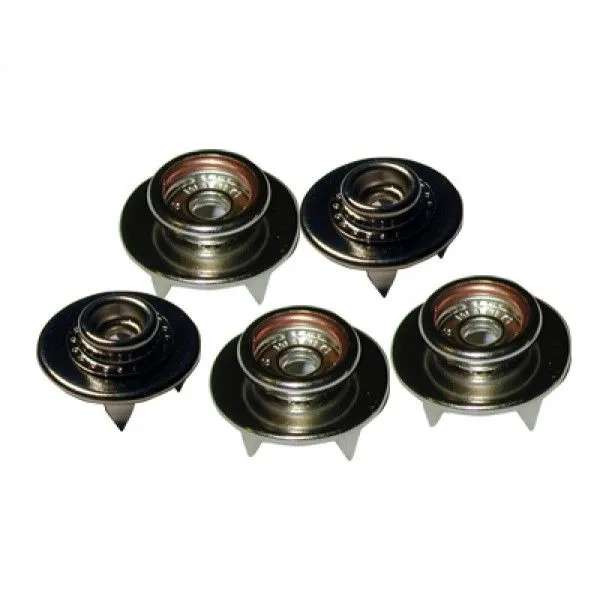

These push & clinch snaps are ideal for multi-layer rubber or vinyl mats. The pronged 3/8" (10mm) socket or 3/8" (10mm) stud is a quick and easy way to install snaps for ESD ground cables. Provides a strong contact for table matting. The bend-able pronged teeth allow the snap to be removed and used over again.

Grounding snaps are used to connect a ground cord to a work surface static safe mat or a ESD floor mat. An antistatic floor mat or ground mat is one of a number of antistatic devices designed to help eliminate static electricity. It does this by having a conductive material embedded within the mat that collects the static.

How to Install Clinch Snaps

• Locate the safest and most convenient snap location.
• Press the snap down on the top side until prongs puncture matting and are fully visible on the underside of the mat.
• Bend the prongs of the snaps until flush against the underside of the mat.
• Bend the prongs up to remove the snap from the matting.

Additional information

• Type: 10mm Grounding Snap
• Snap Size: 10mm
• Snap Type: Female Socket
